LP560 Elenco

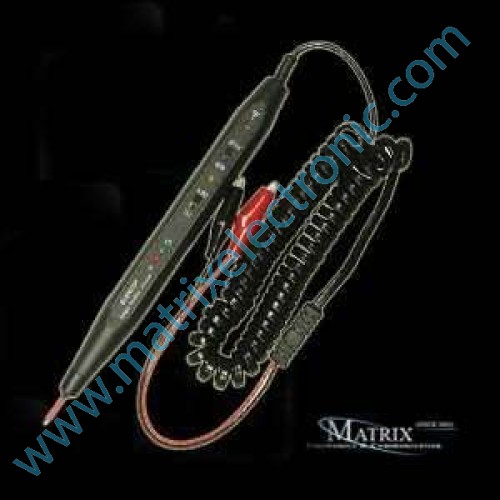

Hand-held digital logic probe provides convenient and precise use in the measurement of logic circuits.  Displays logic levels (high or low); pulses and voltage transients down to 25 nanoseconds.  High intensity LED readouts provide instant response to the logic state.

Features:

·         Tests all logic families (TTL, LSI, CMOS, ECT)
·         Captures pulses to 25ns (20MHz)
·         Audio beeper, two tones HI and LOW
·         Memory function
·         Colored LED's for different functions
·         Input overload protection
·         Logic probe is circuit powered
·         Reverse polarity protection.
           Working Voltage

4-18VDC Frequency Response 20MHz Minimum detectable pulse width 25ns Input impedence 1MΩ Input overload protection ±220VAC/DC 15s Supply voltage protection ±20VDC Pulse indicator flash time 500ms Operating temperature 32° - 122°F (0° - 50°C)
